Step 4 : build a Spectral Deferred Correction type time-stepper
📜 Now that we can approximate the \(Q\) matrix from our time-stepping scheme :
with a given \(Q_\Delta\) approximation, we can build a SDC-type time-stepper.
💡 While SDC was originally built with a collocation method, nothing prevent to use exactly the same approach with any other type of \(Q\)-coefficients …
Consider (again) the Dahlquist problem :
with \(\lambda=i\) (imaginary unit), \(T=4\pi\), and \(u_0=e^{\frac{i\pi}{6}}\) :
[1]:
import numpy as np
lam = 1j
T = 4*np.pi
u0 = np.exp(1j*np.pi/6)
Let say we want to solve it numerically, using \(12\) time-steps of the a SDC time-stepper using a \(Q_\Delta\) based on Backward Euler steps between the nodes. This is how we can do it with qmat :
[2]:
from qmat import Q_GENERATORS, QDELTA_GENERATORS
coll = Q_GENERATORS["coll"].getInstance() # use default input parameters for the Collocation class
nodes, weights, Q = coll.genCoeffs()
QDelta = QDELTA_GENERATORS["BE"](nodes=nodes).getQDelta() # simple Backward Euler based approximation
nSteps = 12
uNum = np.zeros(nSteps+1, dtype=complex)
uNum[0] = u0
dt = T/nSteps
A = np.eye(nodes.size) - lam*dt*Q # all-at-once system
P = np.eye(nodes.size) - lam*dt*QDelta # preconditioner
nSweeps = 4
for i in range(nSteps):
uNodes = np.ones(nodes.size)*uNum[i] # initial guess
for k in range(nSweeps):
r = uNum[i] - A @ uNodes # compute residuals
d = np.linalg.solve(P, r) # solve with preconditioner
uNodes += d # update solution
uNum[i+1] = uNum[i] + lam*dt*weights.dot(uNodes) # prolongation
Let’s explain a bit … as for a RK-type time-stepper, we build the all-at-once system \(A := I - \lambda\Delta{t}Q\) and its preconditioner \(P:= I - \lambda\Delta{t}Q_\Delta\). Then for each time-step, we define a number of iterations or sweeps \(K=4\), and :
starts with \(u_n := [u_n, \dots, u_n]^T\) as initial guess for the node solutions
update the node solutions \(u^k\) to \(u^{k+1}\) for \(k \in \{0, \dots, K-1\}\):
compute the residuals \(r = u_n - A u^k\)
solve with the preconditioner to retrieve the defect \(d = P^{-1}r\)
update the node solution with the defect \(u^{k+1} = u^k + d\)
update the step solution with the prolongation applied on \(u^{K}\)

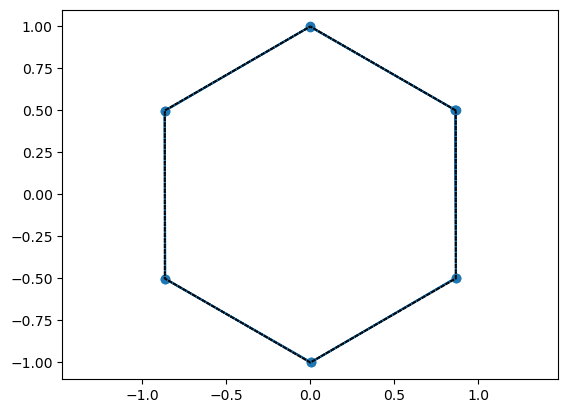

And here is the obtained numerical solution and associated \(L_\infty\) error :
[3]:
import matplotlib.pyplot as plt
plt.plot(uNum.real, uNum.imag, 'o-')
plt.axis("equal")
times = np.linspace(0, T, nSteps+1)
uExact = u0 * np.exp(lam*times)
plt.plot(uExact.real, uExact.imag, ':', c="k")
print("L_inf error : {:1.5f}".format(np.linalg.norm(uNum-uExact, ord=np.inf)))
L_inf error : 0.00535
While the error is not as small as the collocation solution in tutorial 2, this is still more accurate compared to the RK4 method in the same tutorial. In fact, SDC’s accuracy depends on the number of sweeps performed within each steps; if we write the full sweep update (iteration) :
we can see that if it converges to a fixed point solution \(u^{\infty}\) (which we assume for now), then its is simply the solution of the all-at-once system as \(u_n - A u^{\infty} = 0\).
And if we look at the structure of \(P\) here :
[4]:
print("P :")
print(P)
P :
[[1.-0.09276909j 0.+0.j 0.+0.j 0.+0.j ]
[0.-0.09276909j 1.-0.3360236j 0.+0.j 0.+0.j ]
[0.-0.09276909j 0.-0.3360236j 1.-0.39604236j 0.+0.j ]
[0.-0.09276909j 0.-0.3360236j 0.-0.39604236j 1.-0.22236249j]]
\(\Rightarrow\) this is a lower triangular matrix, which means that we don’t need to solve the system all-at-once, but we can solve it line by line as it is done for classical RK method (c.f tutorial 2).
However, this comes with some drawback : since it’s an iterative process, one should do enough sweeps to retrieve a satisfying accuracy. To look deeper into it, we simplify the node solution update by replacing in it \(P\) and \(A\) by their expression :
This update formula is more stable from a numerical perspective and simpler from an implementation perspective. So our SDC time-steppers becomes :
[5]:
nSweeps = 4
for i in range(nSteps):
uNodes = np.ones(nodes.size)*uNum[i] # initial guess
for k in range(nSweeps):
# nodes solution update
b = uNum[i] + lam*dt*(Q-QDelta) @ uNodes
uNodes = np.linalg.solve(P, b)
uNum[i+1] = uNum[i] + lam*dt*weights.dot(uNodes) # prolongation
Of course, some convenience functions are provided by qmat directly, so we compute the SDC solution with :
[6]:
from qmat.sdc import solveDahlquistSDC
uNum = solveDahlquistSDC(lam, u0, T, nSteps, nSweeps, Q, QDelta, weights)

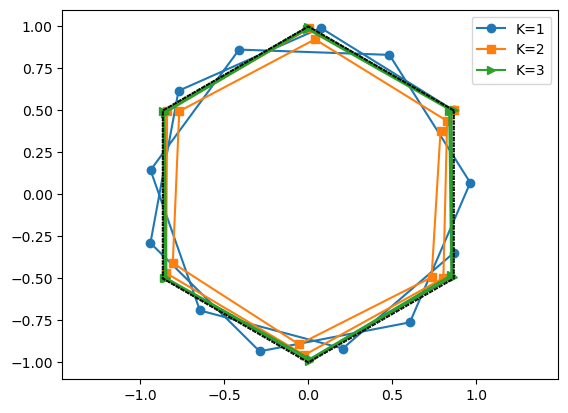

and we observe of the solution evolves with each sweeps :
[7]:
for nSweeps, sym in zip([1, 2, 3], ['o', 's', '>']):
uNum = solveDahlquistSDC(lam, u0, T, nSteps, nSweeps, Q, QDelta, weights)
plt.plot(uNum.real, uNum.imag, sym+'-', label=f"K={nSweeps}")
plt.axis("equal")
plt.legend()
plt.plot(uExact.real, uExact.imag, ':', c="k");
For the first sweep, the numerical solution is very far from the exact solution. And as expected, doing more sweeps corrects it toward the exact solution.
This can be illustrated more rigorously looking at the \(L_\infty\) error :
[8]:
from qmat.sdc import errorDahlquistSDC
for nSweeps in [1, 2, 3, 4, 5, 6, 8, 9]:
err = errorDahlquistSDC(lam, u0, T, nSteps, nSweeps, Q, QDelta, weights)
print(f"nSweeps={nSweeps}, err={err:1.5f}")
nSweeps=1, err=0.84538
nSweeps=2, err=0.14365
nSweeps=3, err=0.02750
nSweeps=4, err=0.00535
nSweeps=5, err=0.00106
nSweeps=6, err=0.00021
nSweeps=8, err=0.00002
nSweeps=9, err=0.00001
In particular, for the \(Q_\Delta\) based on Backward Euler, it takes \(K=9\) sweeps to reach a similar accuracy as this of the underlying collocation method (cf tutorial 2).
The choice of \(Q_\Delta\) for the preconditioner has actually a big impact on how fast SDC converges to the solution of the all-at-once system, hence the different \(Q_\Delta\)-generators provided by qmat. For instance, using those magical MIN3 coefficients introduced in tutorial 2 …
[9]:
QDelta = QDELTA_GENERATORS["MIN3"](nNodes=coll.nNodes, nodeType=coll.nodeType, quadType=coll.quadType).getQDelta()
for nSweeps in [1, 2, 3, 4, 5, 6, 8, 9]:
err = errorDahlquistSDC(lam, u0, T, nSteps, nSweeps, Q, QDelta, weights)
print(f"nSweeps={nSweeps}, err={err:1.5f}")
nSweeps=1, err=1.62904
nSweeps=2, err=0.05860
nSweeps=3, err=0.00558
nSweeps=4, err=0.00036
nSweeps=5, err=0.00002
nSweeps=6, err=0.00001
nSweeps=8, err=0.00001
nSweeps=9, err=0.00001
… makes SDC converge way faster to the solution of the all-at-once system ! However, evaluating the quality of a given \(Q_\Delta\) for more complex problems can be difficult as usually no exact solution is known beforehand to compute the error.
But SDC also provides a built-in indicator to estimate the error, by monitoring the residuals after each sweeps …
